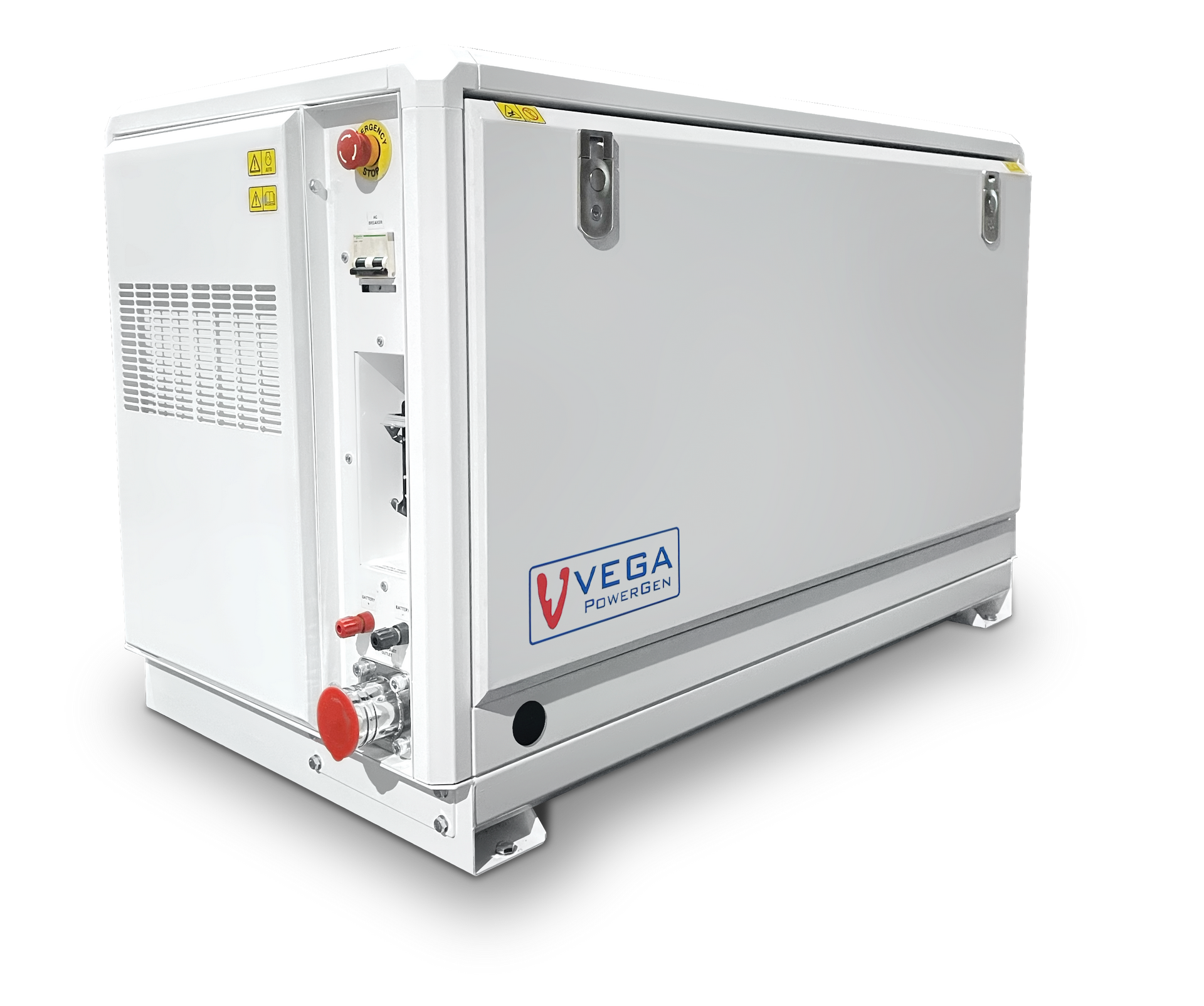

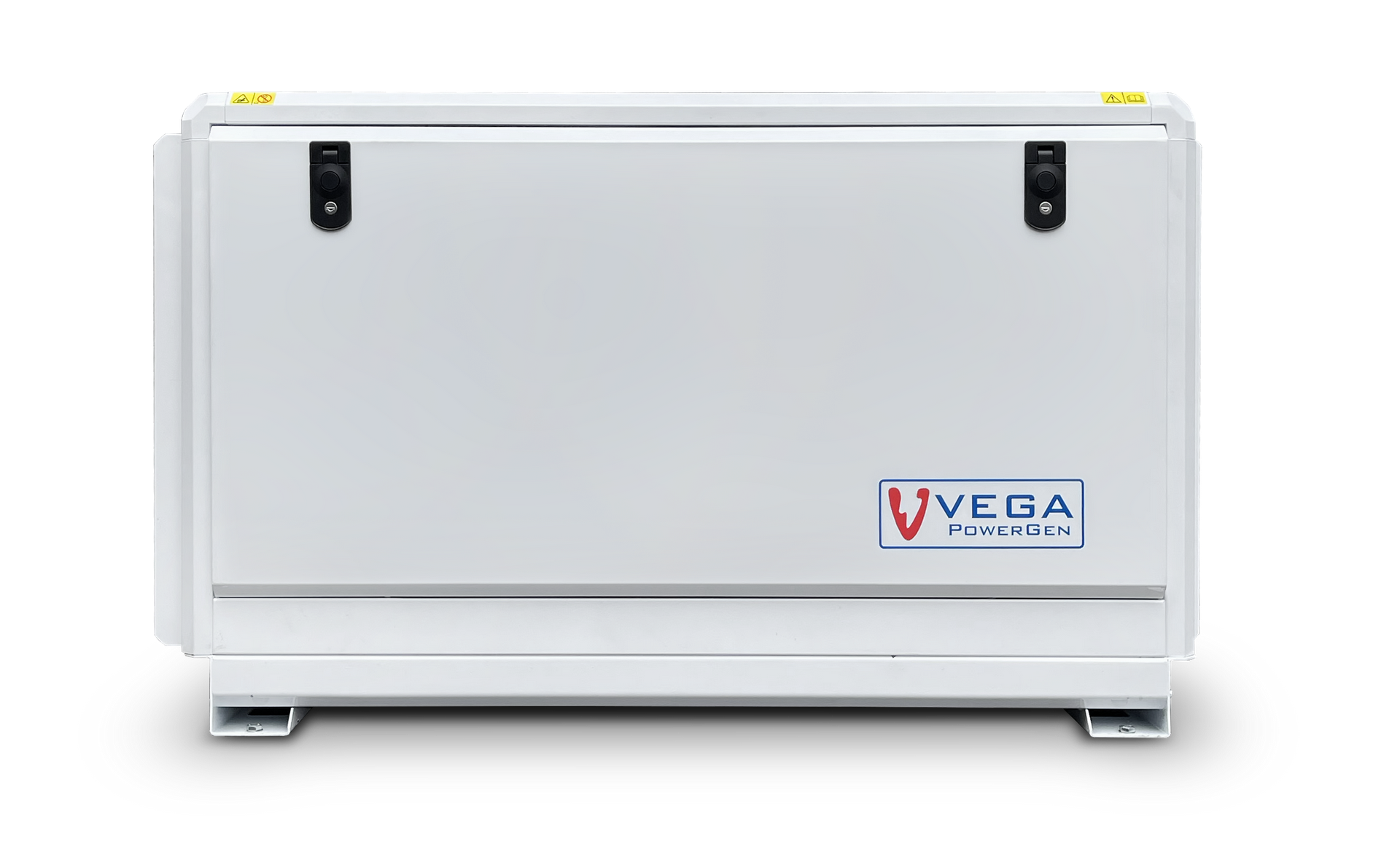

TS-VPG20

16 kWe / 20 kVA
Marine Generator Set

GENERAL INFORMATIONS

Genset model: ​​​​​​​​​TS-VPG20
Power kWe / kVA:  ​​​​​​​​16 kWe / 20 kVA
Frequency: ​50 Hz
Amperage: ​​28,8 A
Phases: 1
Voltage: ​​400 / 230 V

  • –

DIMENSION AND WEIGHT
  • –
    Total lenght with canopy: 1277,5 mm
  • –
    Total height with canopy: ​​​​800 mm
  • –
    Total width with canopy:  675 mm
  • –
    Dry weight with canopy: 500 kg

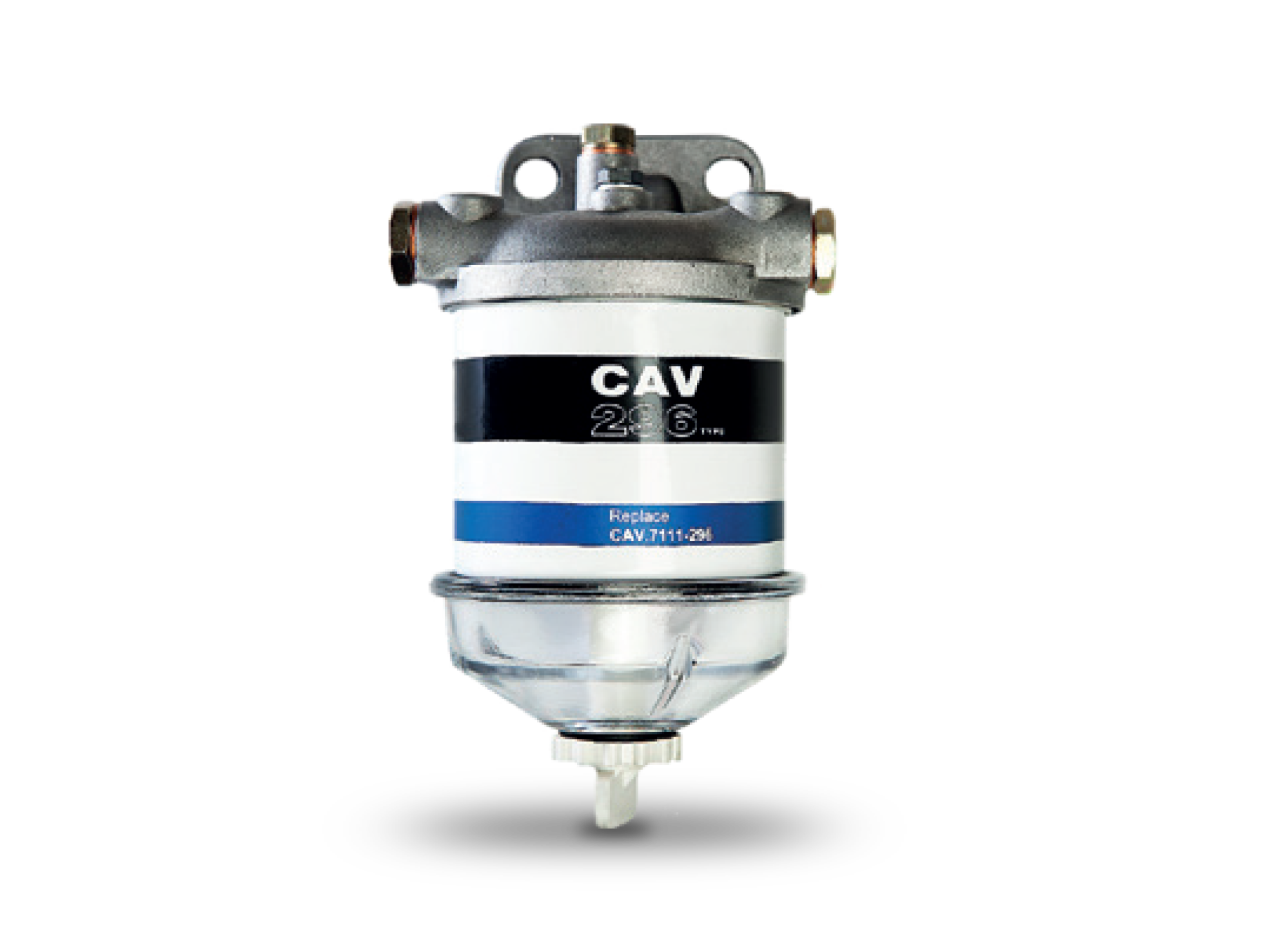

FUEL SYSTEM DETAILS
  • –
    Consumption 24%: ​2,0 L/H
  • –
    Consumption 50%: ​​3,2 L/H
  • –
    Consumption 75%: 4,5 L/H
  • –
    Consumption 100%:​ ​​​​6,1 L/H
  • –
    Fuel type: Diesel
  • –
    Fuel standards: Fueloil diesel ASTM
  • –
    Injection pump type: In-line
  • –
    Governor type: Electronic type governor
ELECTRICAL SYSTEM
  • –
    Electrical system voltage: ​12 V
  • –
    Starter power: ​3 kW
  • –
    Max. electric resistance of starting circuit: ​​0.004 Ω
  • –
    Battery charger absorbed power: ​0,5 A
  • –
    Battery charger current: ​35 A
  • –
    Min. sectional area of wire: ​50 mm2

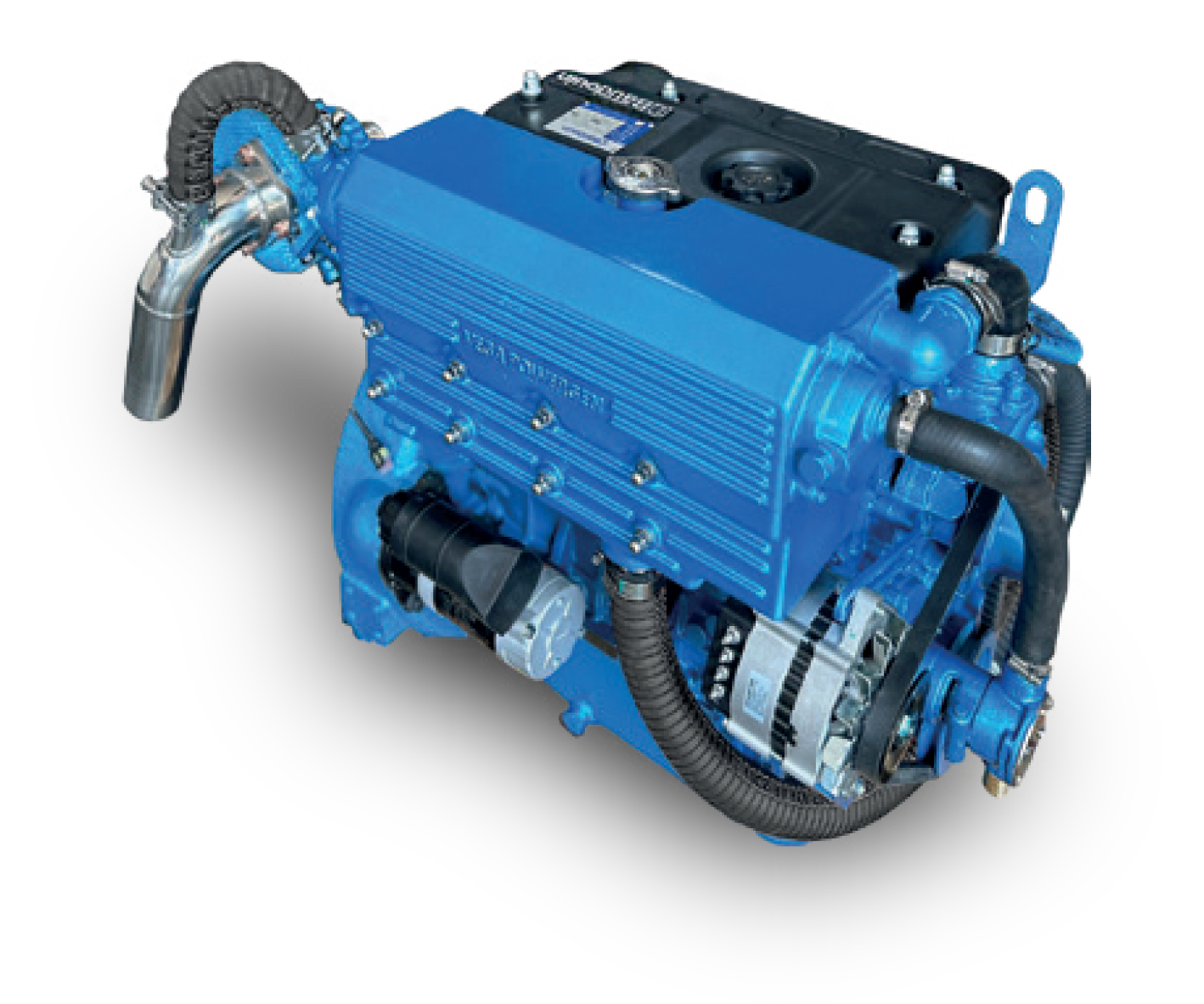

ENGINE DESCRIPTION

Engine brand: Moteurs Baudouin
No of the cylinders / Valves: 4/8
Engine RPM: 1500
Number of cylinders: 4
Displacement (L): 2,3
Oil capacity min/max (L): 7,1 / 9,5
Compression ratio: 17,5:1
Net engine output (PRP*) : 22 kWm PRP
Bore&Stroke : 89 x 92 mm
Injection system: Mechanical and direct
Cooling system: Combined heat excharger and wet exhaust manifold
Intake system:  Natural
Flywheel housing: SAE 4
Flywheel:  11.5’’

  • –

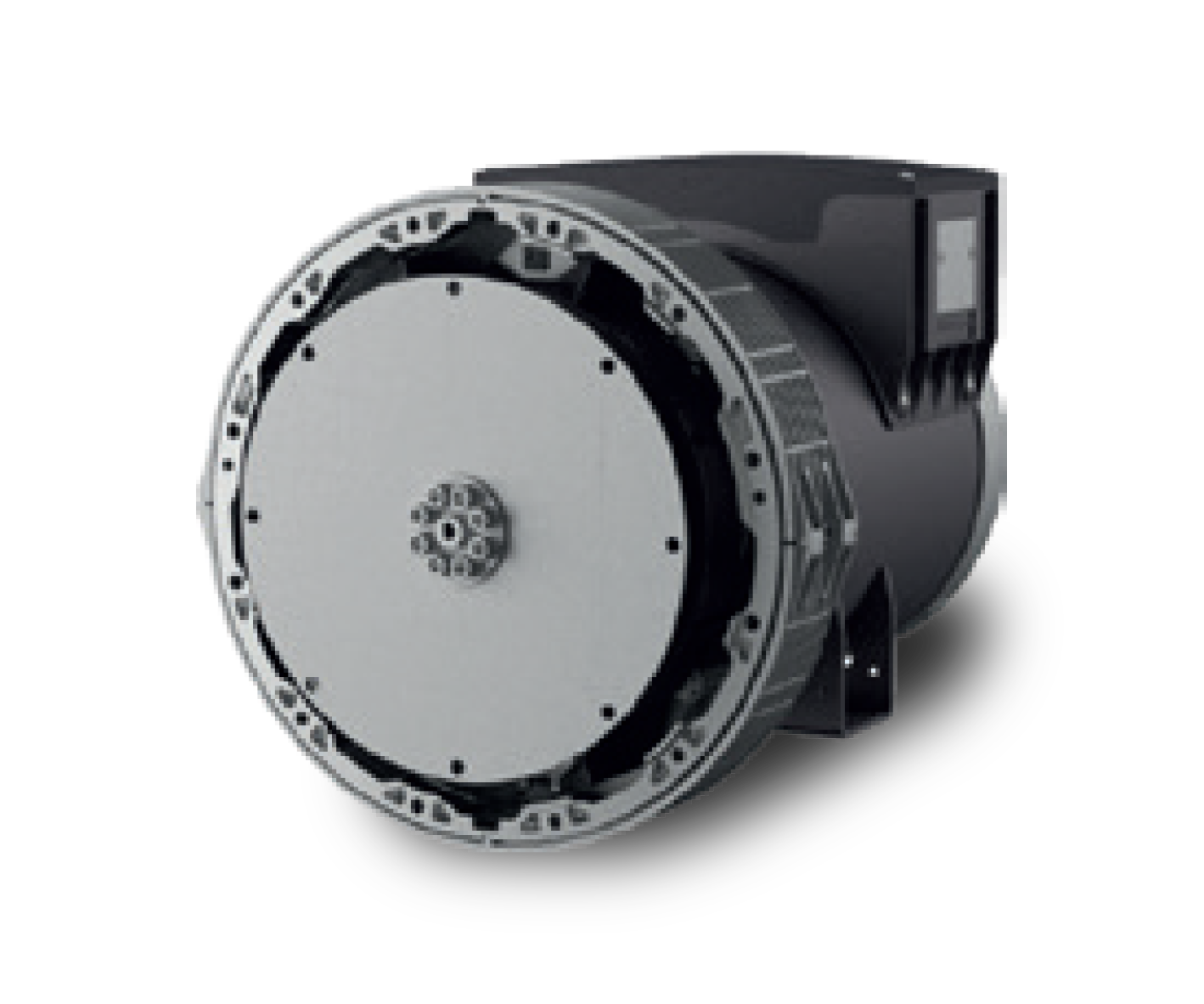

ALTERNATOR DESCRIPTION

Brand: NSM
Model:  ZB132MA
AVR Type: AVR 625D
Number of poles: 6
Insulation class: H
IP protection: 23
Cos:  0,8
Tropicalized: Yes

  • –

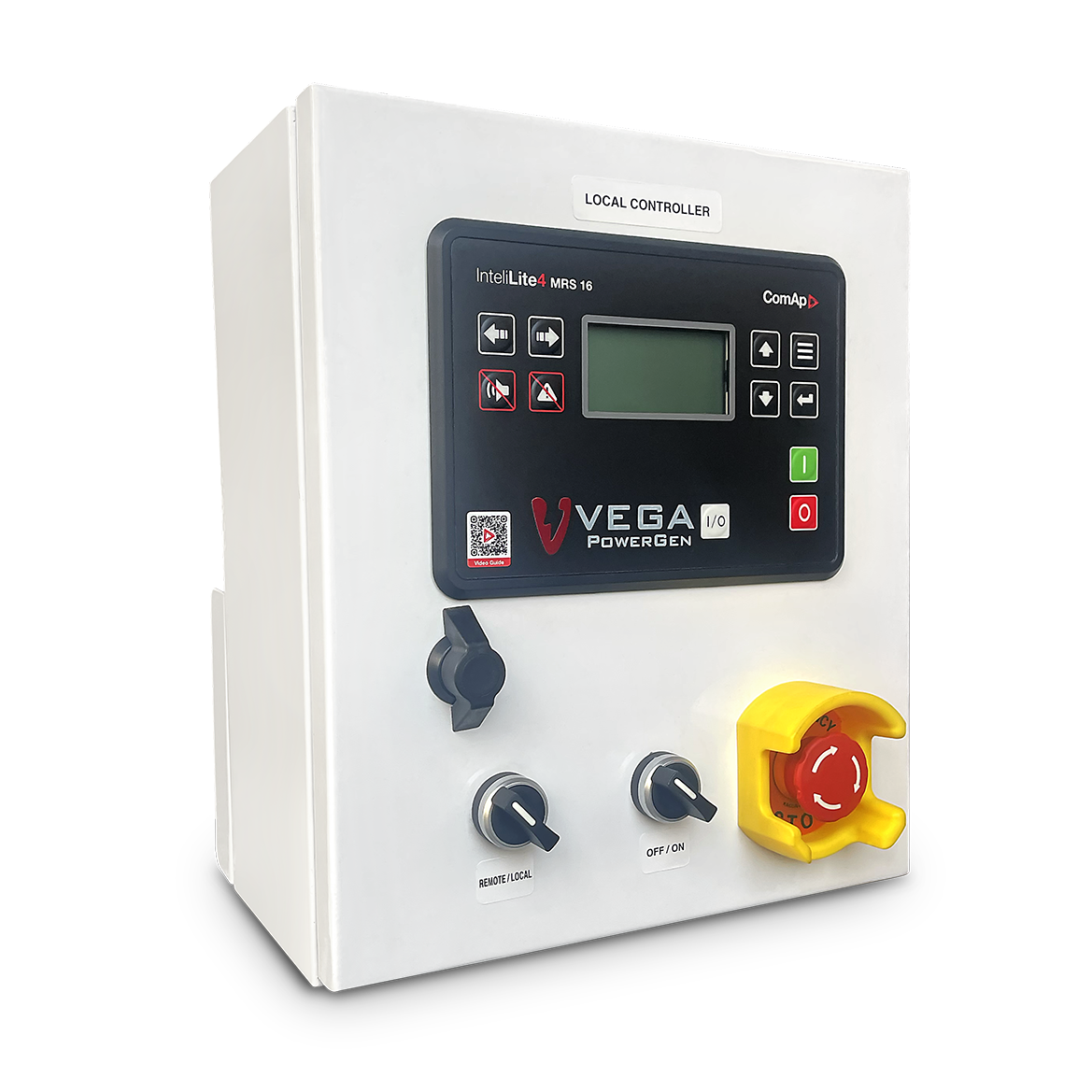

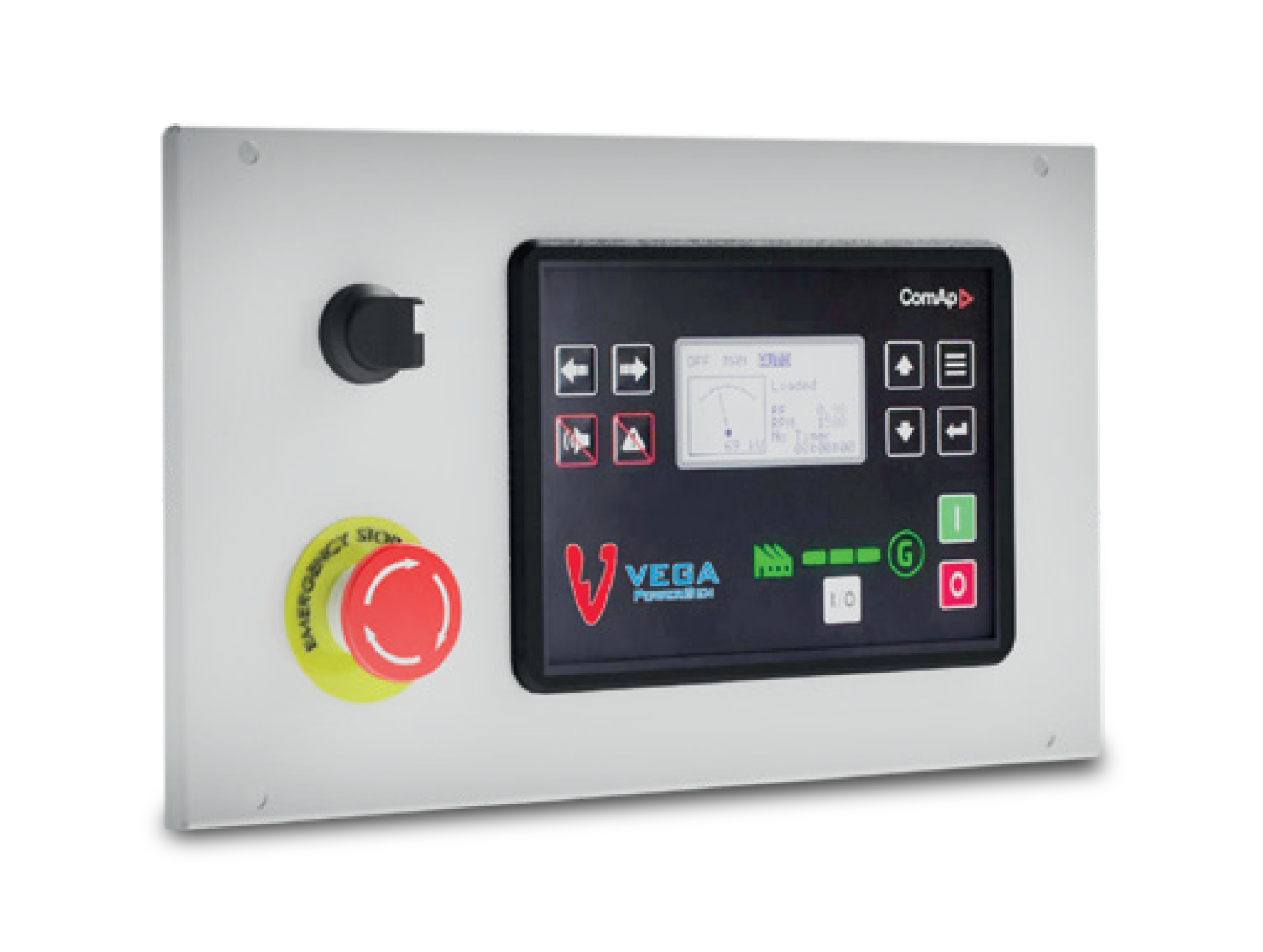

CONTROL SYSTEM

Brand:COMAP
Power supply range : 8-36 VDC
Protection degree: IP 65
Key features: 8 binary outputs, 8 + 1 binary inputs, 4 analog inputs
RS485, 2slots for extension plug-in mod. (Modbus,Internet,SMS)
Extension CAN Module
Remote Display Option
Local / Remote Switch
On / Off Switch
Emergency Stop Button
Certifications and standards: EN 61000-6-2 , EN61000-6-4 , EN61010-1
Operation temperature: -20°C to +70 °C
Control cabinet dimension (mm): 300 x 350 x 170

  • –

TECHNICAL DRAWİNG
